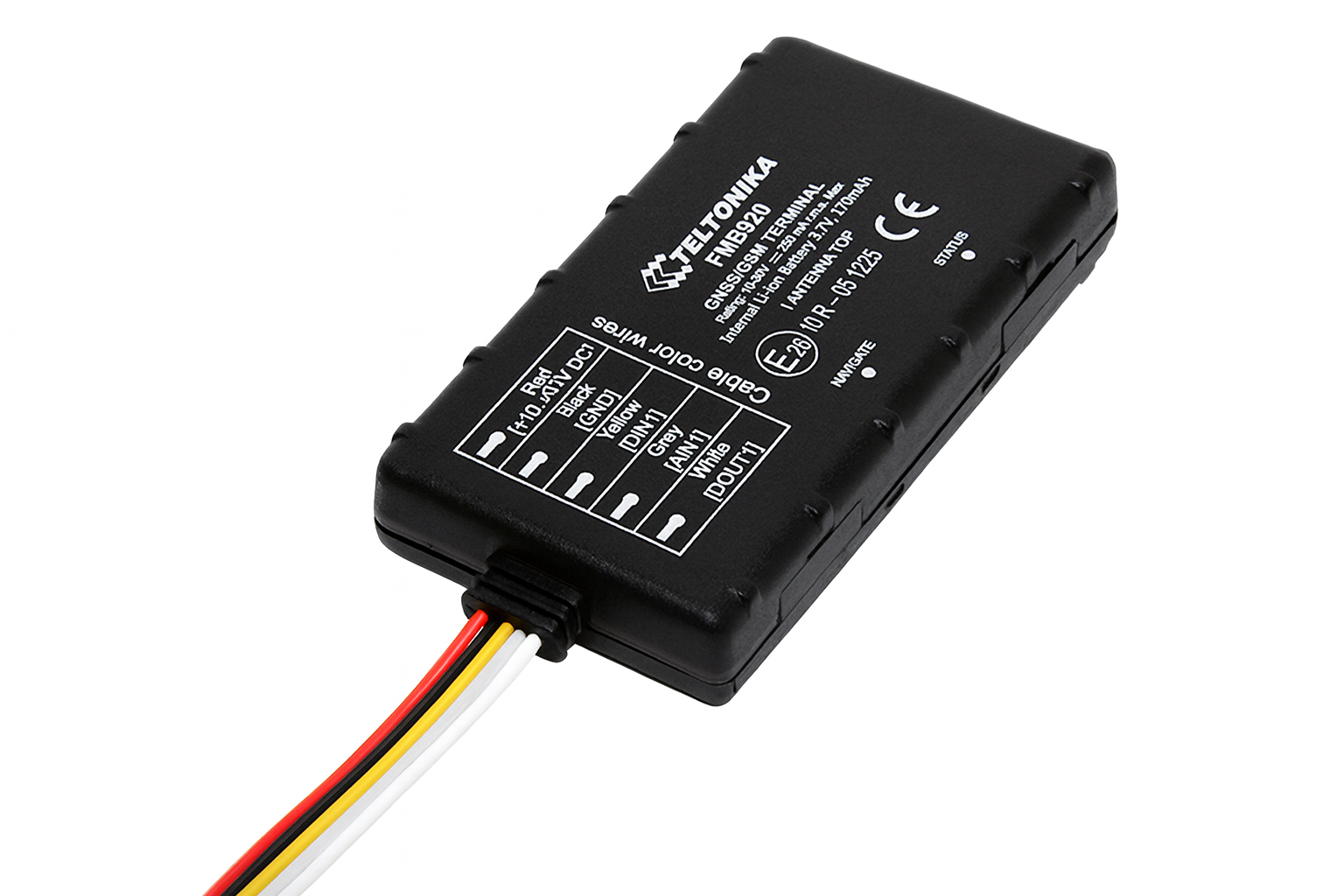

FMB920
| 2G GPS hardware and Locator tracker. Internal backup battery and 128MB internal flash memory.Small &smart tracker with Bluetooth connectivity for remote commercial fleet telematics |
Technology GSM/GPRS/GNSS/BLUETOOTH® LE GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Receiver 33 tracking channels,99 acquisition channels Tracking sensitivity -165 dBM Position Accuracy < 2.5 m CEP Velocity Accuracy < 0.1 m/s (within +/- 15% error) Hot start < 1 s Warm start < 25 s Cold start < 35 s CellularTechnology GSM 2G bands Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B Data support SMS (text/data) Power Input voltage range
6–30 V DC with overvoltage protection,Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh), Internal fuse 3A, 125VBluetooth® Technology 4.0 + LE Supported peripherals EYE beacon and sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Bluetooth ® LE beacons and sensors support Physical specification Dimension - 79*43*12mm(L*W*H) Weight 54g Memory 128MB Internal Flash Memory Sensors
Accelerometer Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
